Blackmagic URSA Mini Pro 4.6K G2
URSA Mini Pro 4.6K G2 is the new generation digital camera with completely revised electronic components and a high performance 4.6K HDR sensor for recordings up to 300 fps. It boasts a 4.6K Super 35mm sensor with 15 stops of dynamic range, integrated ND filters and an EF lens mount as standard interchangeable with the optional PL, B4, or F mountings. Records in Blackmagic RAW and ProRes formats on two CFast slots or two slots SD, and thanks to the innovative USB C expansion port, also on external drives. It includes numerous broadcast camera-style external controls, a backlit status display, a resealable touch screen and more.
Specifications

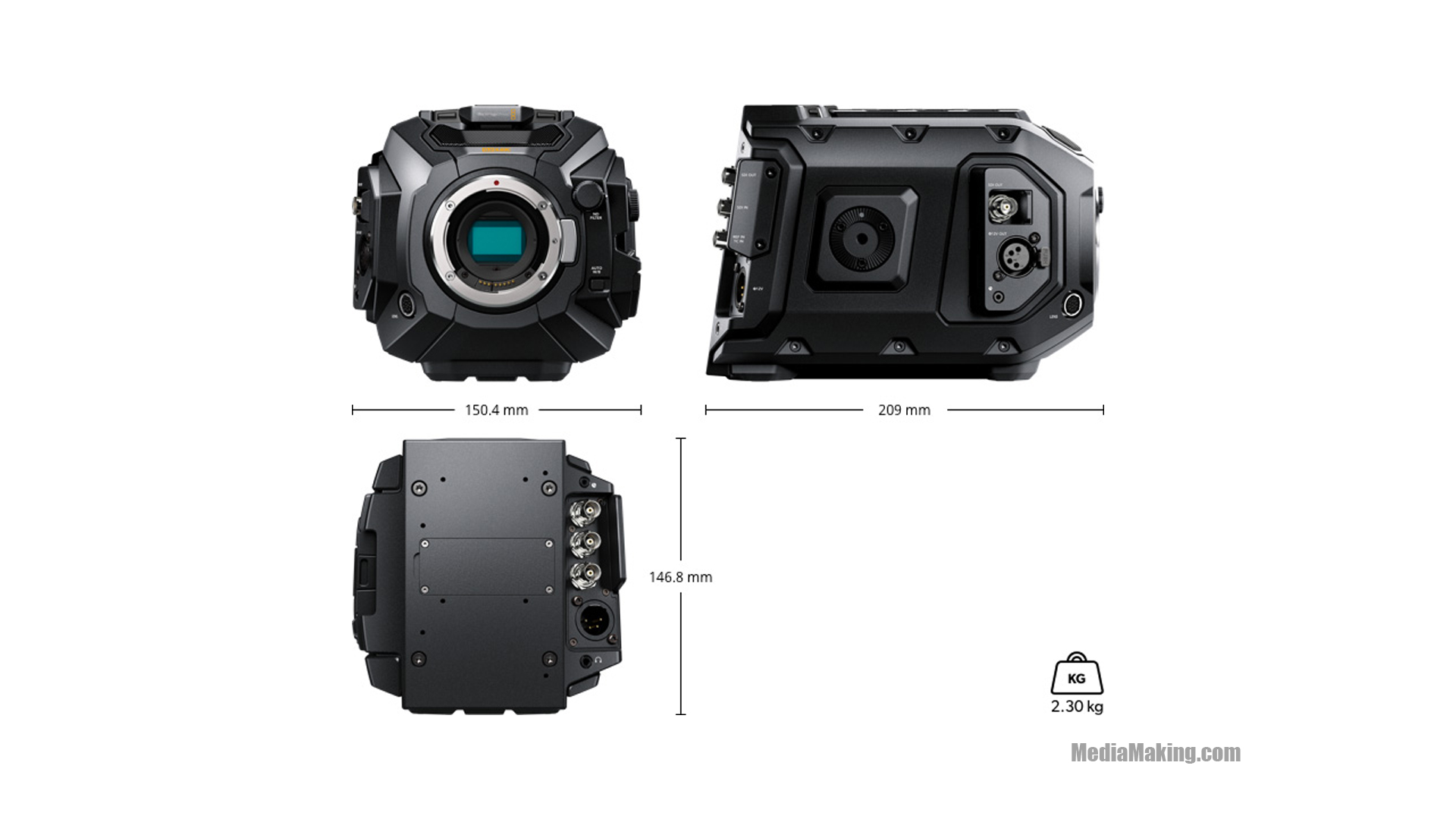

Dimensions150,4 x 209 x 146,8 mm (LxAxP)
Weight2,30 kg
Sensor sizeSuper 35 (25,34 mm x 14,25 mm)
Resolutions4608 x 2592, 4608 x 1920 (4.6K 2.40:1),4096 x 2304 (4K 16:9),
4096 x 2160 (4K DCI),
3840 x 2160 (Ultra HD),
3072 x 2560 (3K Anamorphic),
2048 x 1152 (2K 16:9),
2048 x 1080 (2K DCI),
1920 x 1080
Frame rate The sensor frame rate varies with & nbsp; depending on the resolution and & nbsp; of the selected codecs. Supports frame rate of 23.98, 24, 25, 29.97, 30, 50, 59.94 fps
LCD Dimension4″
Inputs/Outputs Video inputs
1 x SDI

Video outputs
1 x SDI, 1 x SDI for monitoring

SDI transmission
1.5G, 3G, 6G, 12G

Analog audio inputs
2 x XLR switchable between mic / line and AES levels. Support phantom power

Analog audio outputs
1 x 3.5mm headphone jack compatible with iPhone headphone microphone for talkback

Reference inputs
Tri-sync, black burst, timecode

Remote control
2 x 2.5 mm LANC inputs for recording start / stop. Aperture control and focus with compatible lenses

Computer interface
USB C 3.1 first generation for recording on external drives, and software updates
